Night View

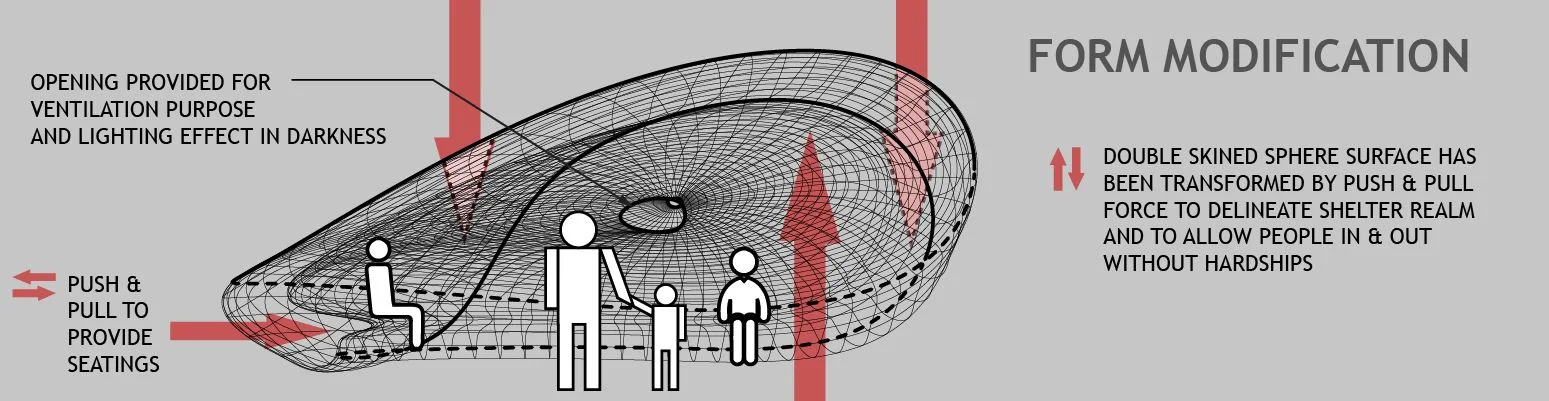

Form Modification

1. DOUBLE SKINED SPHERE SURFACE HAS BEEN TRANSFORMED BY PUSH & PULL FORCE TO DELINEATE SHELTER REALM AND TO ALLOW PEOPLE IN & OUT WITHOUT HARDSHIPS.

2. OPENING PROVIDED FOR VENTILATION PURPOSE AND LIGHTING EFFECT IN DARKNESS.

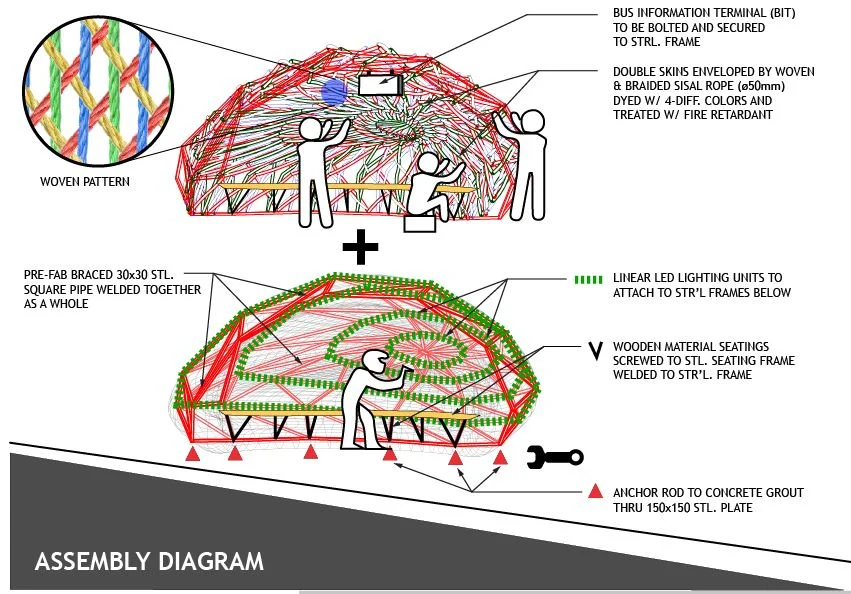

Assembly Diagram

1. ANCHOR ROD TO CONCRETE GROUT THRU 150x150 STL. PLATE.

2. PRE-FAB BRACED 30x30 STL. SQUARE PIPE WELDED TOGETHER AS A WHOLE.

3. WOODEN MATERIAL SEATINGS SCREWED TO STL. SEATING FRAME WELDED TO STR’L. FRAME.

4. LINEAR LED LIGHTING UNITS TO ATTACH TO STR’L FRAMES BELOW.

5. DOUBLE SKINS ENVELOPED BY WOVEN & BRAIDED SISAL ROPE (ø50mm) DYED W/ 4-DIFF. COLORS AND TREATED W/ FIRE RETARDANT.

6. BUS INFORMATION TERMINAL (BIT) TO BE BOLTED AND SECURED TO STRL. FRAME.

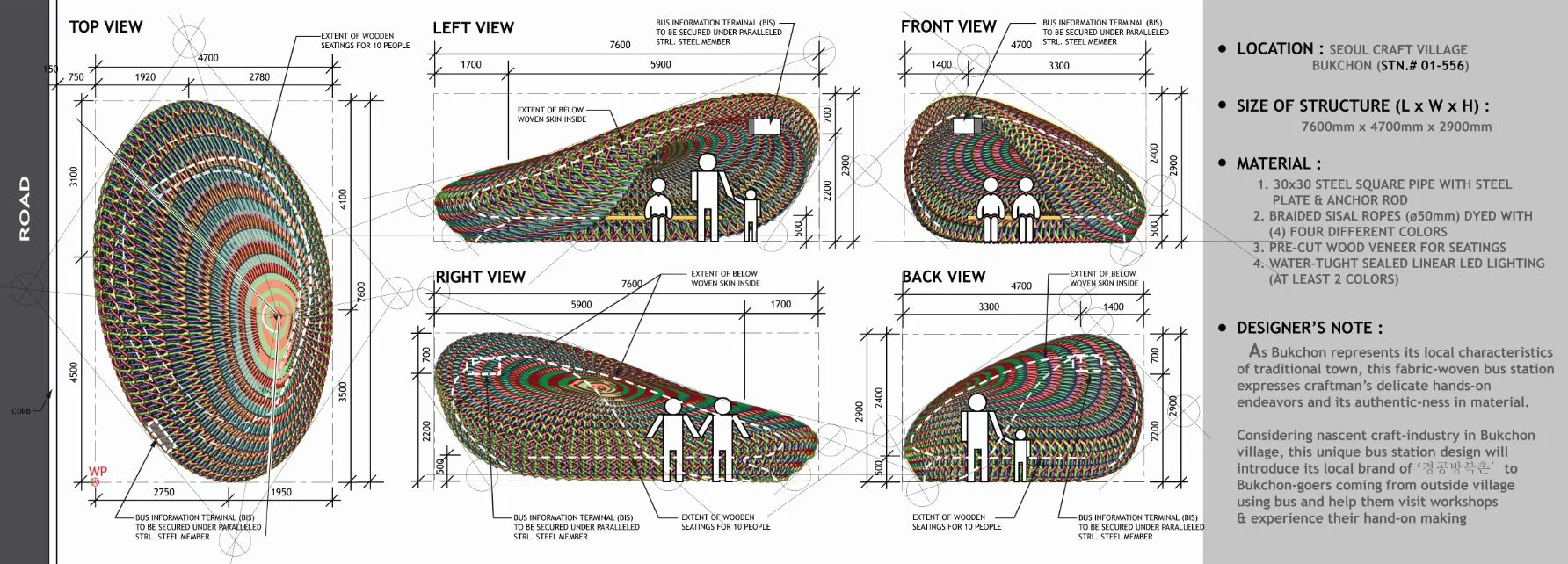

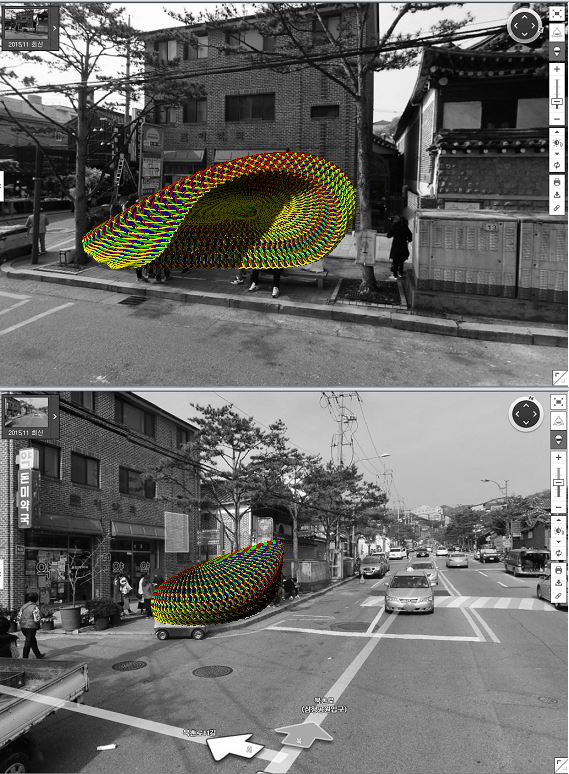

Station laid-over the street views

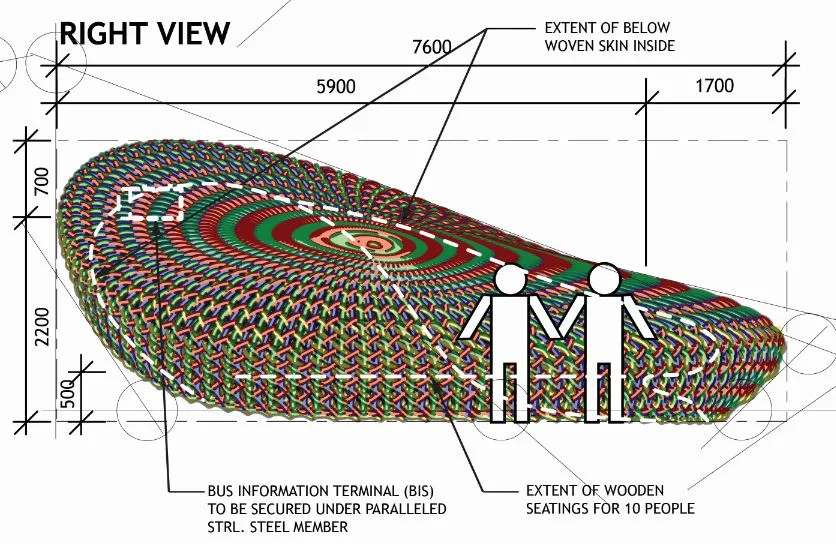

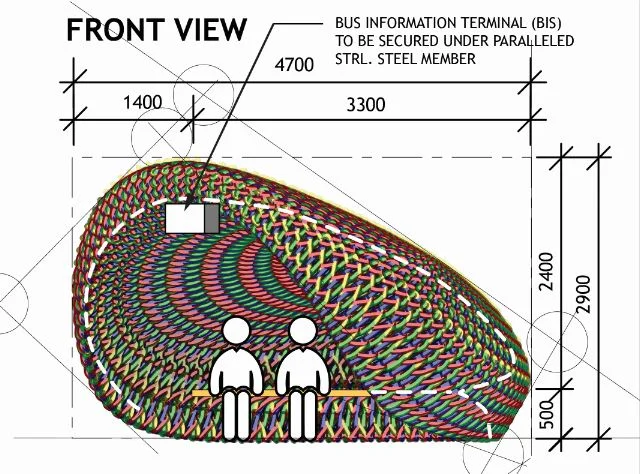

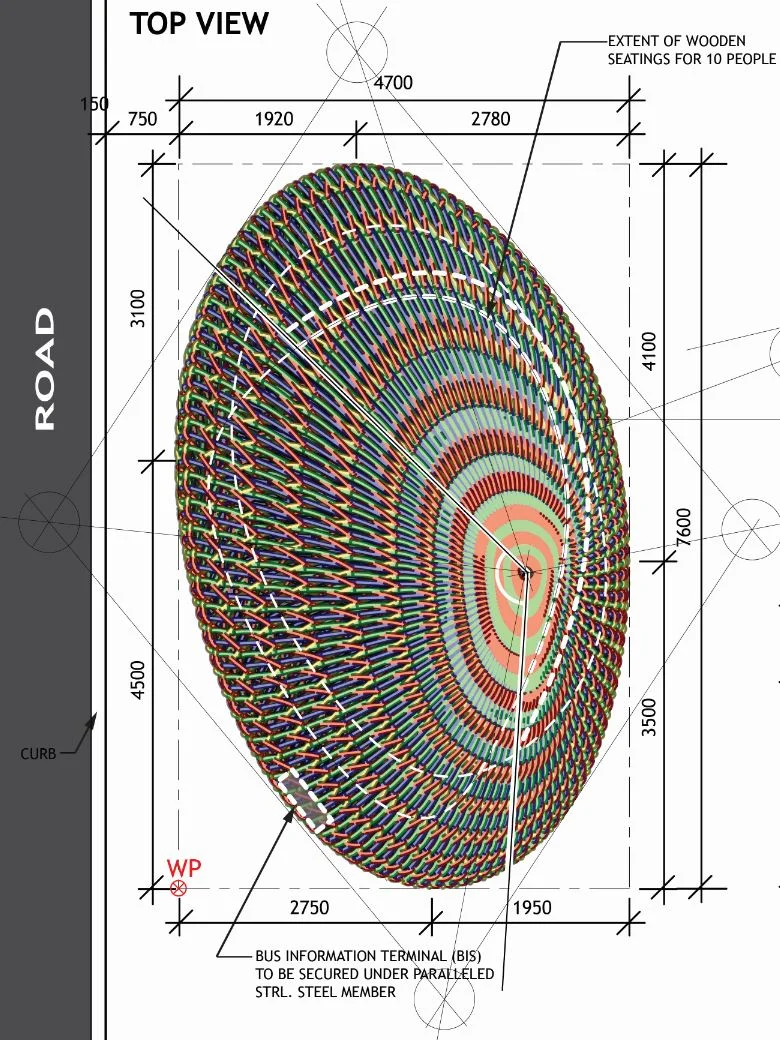

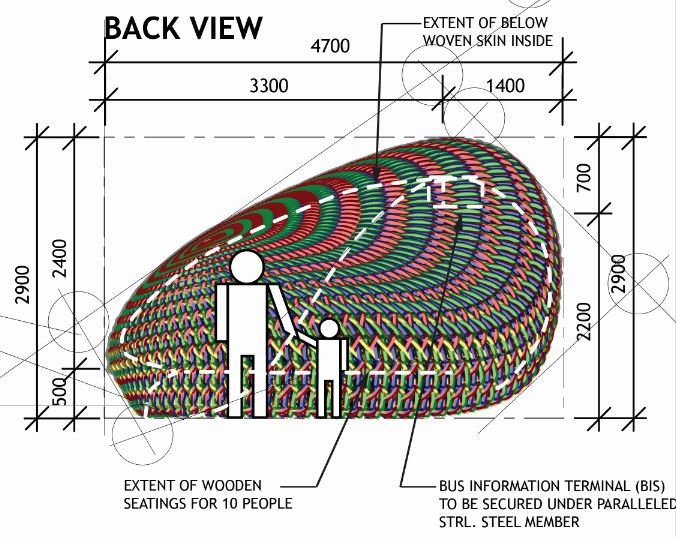

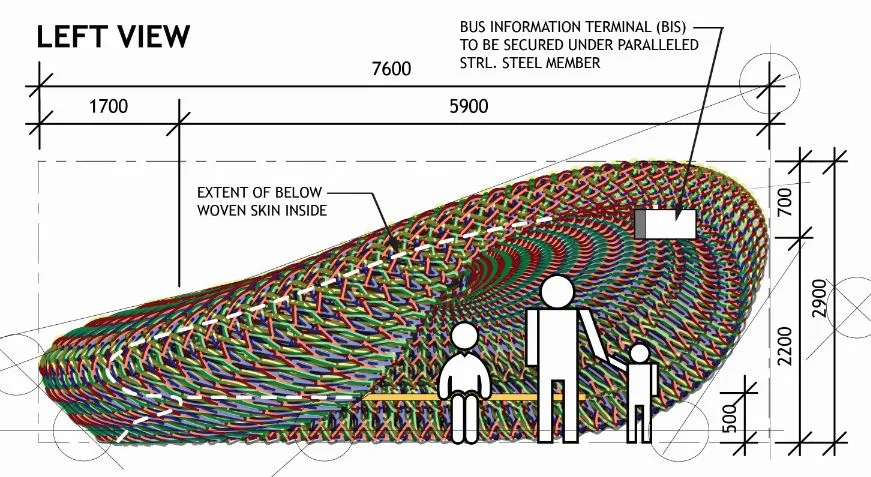

•  SIZE OF STRUCTURE (L x W x H) :
             7600mm x 4700mm x 2900mm

•  MATERIAL :
    1. 30x30 STEEL SQUARE PIPE WITH STEEL PLATE & ANCHOR ROD
    2. BRAIDED SISAL ROPES (ø50mm) DYED WITH (4) FOUR DIFFERENT COLORS
    3. PRE-CUT WOOD VENEER FOR SEATINGS
    4. WATER-TUGHT SEALED LINEAR LED LIGHTING (AT LEAST 2 COLORS)

•  SIZE OF STRUCTURE (L x W x H) :
             7600mm x 4700mm x 2900mm

•  MATERIAL :
    1. 30x30 STEEL SQUARE PIPE WITH STEEL PLATE & ANCHOR ROD
    2. BRAIDED SISAL ROPES (ø50mm) DYED WITH (4) FOUR DIFFERENT COLORS
    3. PRE-CUT WOOD VENEER FOR SEATINGS
    4. WATER-TUGHT SEALED LINEAR LED LIGHTING (AT LEAST 2 COLORS)

•  SIZE OF STRUCTURE (L x W x H) :
             7600mm x 4700mm x 2900mm

•  MATERIAL :
    1. 30x30 STEEL SQUARE PIPE WITH STEEL PLATE & ANCHOR ROD
    2. BRAIDED SISAL ROPES (ø50mm) DYED WITH (4) FOUR DIFFERENT COLORS
    3. PRE-CUT WOOD VENEER FOR SEATINGS
    4. WATER-TUGHT SEALED LINEAR LED LIGHTING (AT LEAST 2 COLORS)

•  SIZE OF STRUCTURE (L x W x H) :
             7600mm x 4700mm x 2900mm

•  MATERIAL :
    1. 30x30 STEEL SQUARE PIPE WITH STEEL PLATE & ANCHOR ROD
    2. BRAIDED SISAL ROPES (ø50mm) DYED WITH (4) FOUR DIFFERENT COLORS
    3. PRE-CUT WOOD VENEER FOR SEATINGS
    4. WATER-TUGHT SEALED LINEAR LED LIGHTING (AT LEAST 2 COLORS)

•  SIZE OF STRUCTURE (L x W x H) :
             7600mm x 4700mm x 2900mm

•  MATERIAL :
    1. 30x30 STEEL SQUARE PIPE WITH STEEL PLATE & ANCHOR ROD
    2. BRAIDED SISAL ROPES (ø50mm) DYED WITH (4) FOUR DIFFERENT COLORS
    3. PRE-CUT WOOD VENEER FOR SEATINGS
    4. WATER-TUGHT SEALED LINEAR LED LIGHTING (AT LEAST 2 COLORS)

•  SIZE OF STRUCTURE (L x W x H) :
             7600mm x 4700mm x 2900mm

•  MATERIAL :
    1. 30x30 STEEL SQUARE PIPE WITH STEEL PLATE & ANCHOR ROD
    2. BRAIDED SISAL ROPES (ø50mm) DYED WITH (4) FOUR DIFFERENT COLORS
    3. PRE-CUT WOOD VENEER FOR SEATINGS
    4. WATER-TUGHT SEALED LINEAR LED LIGHTING (AT LEAST 2 COLORS)

Kagome basket weaving pattern

Typical woven pattern for double skin

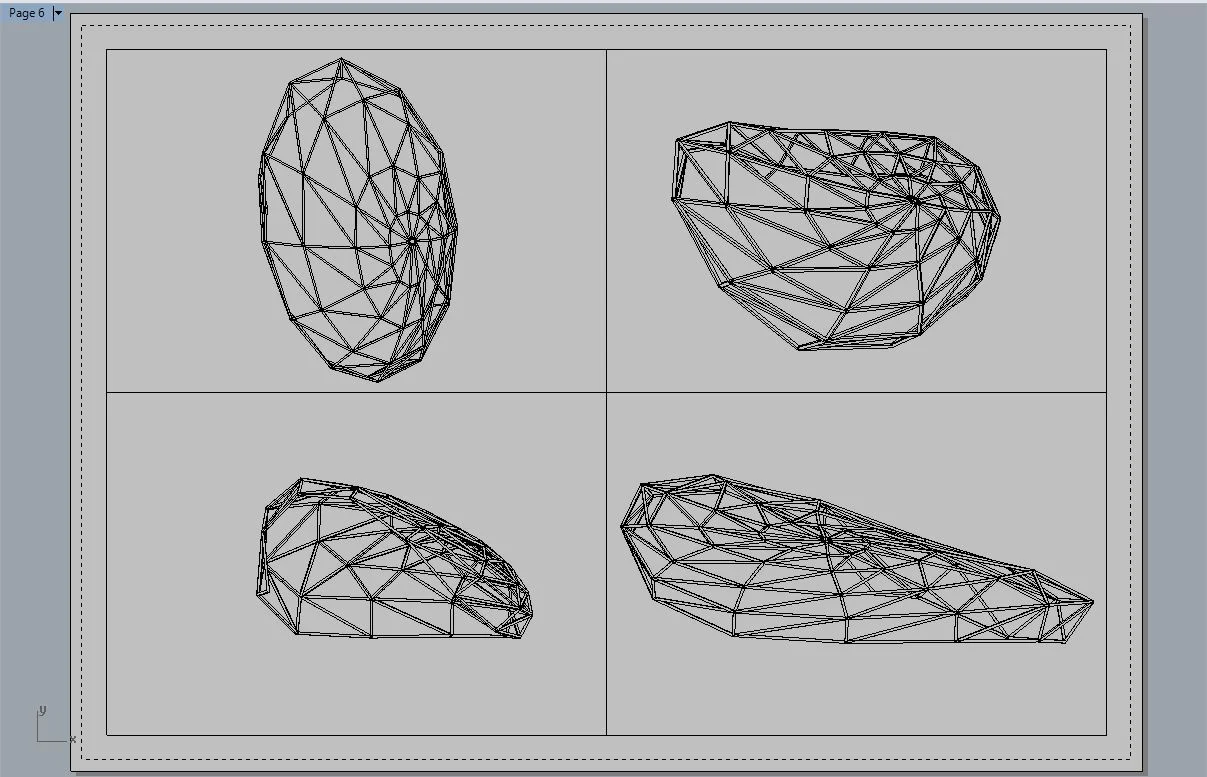

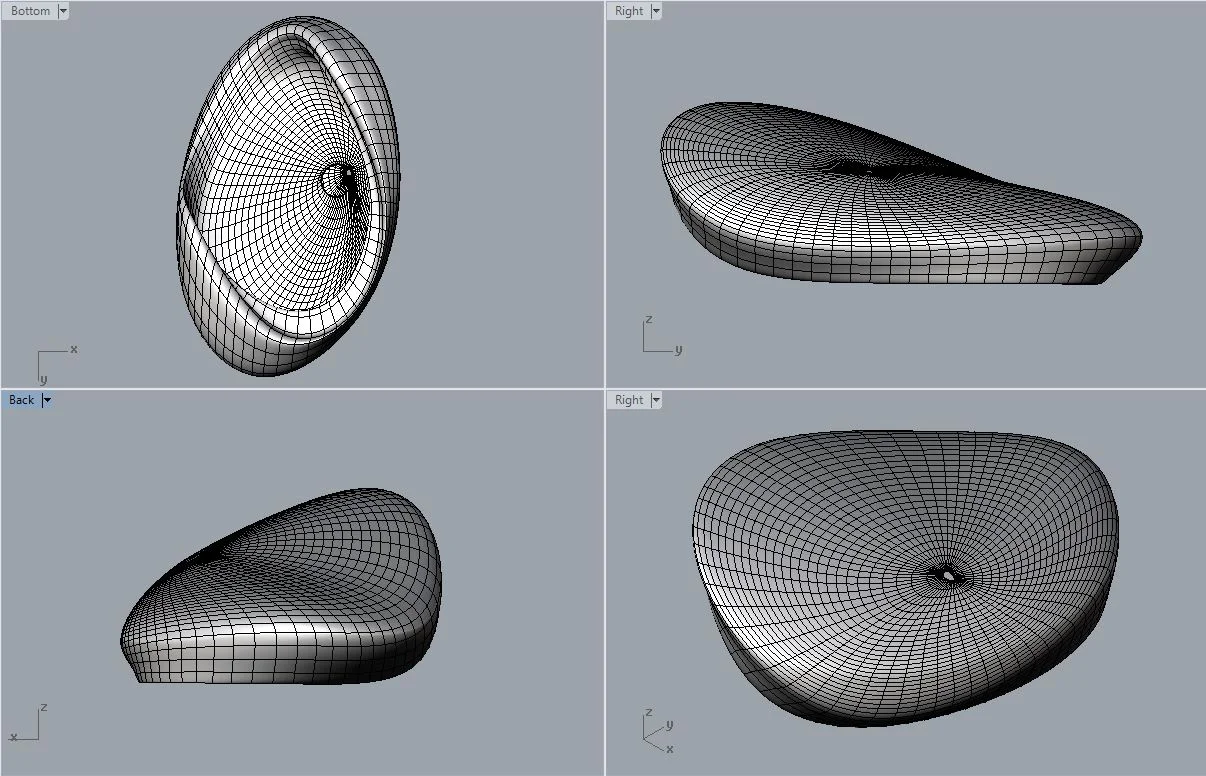

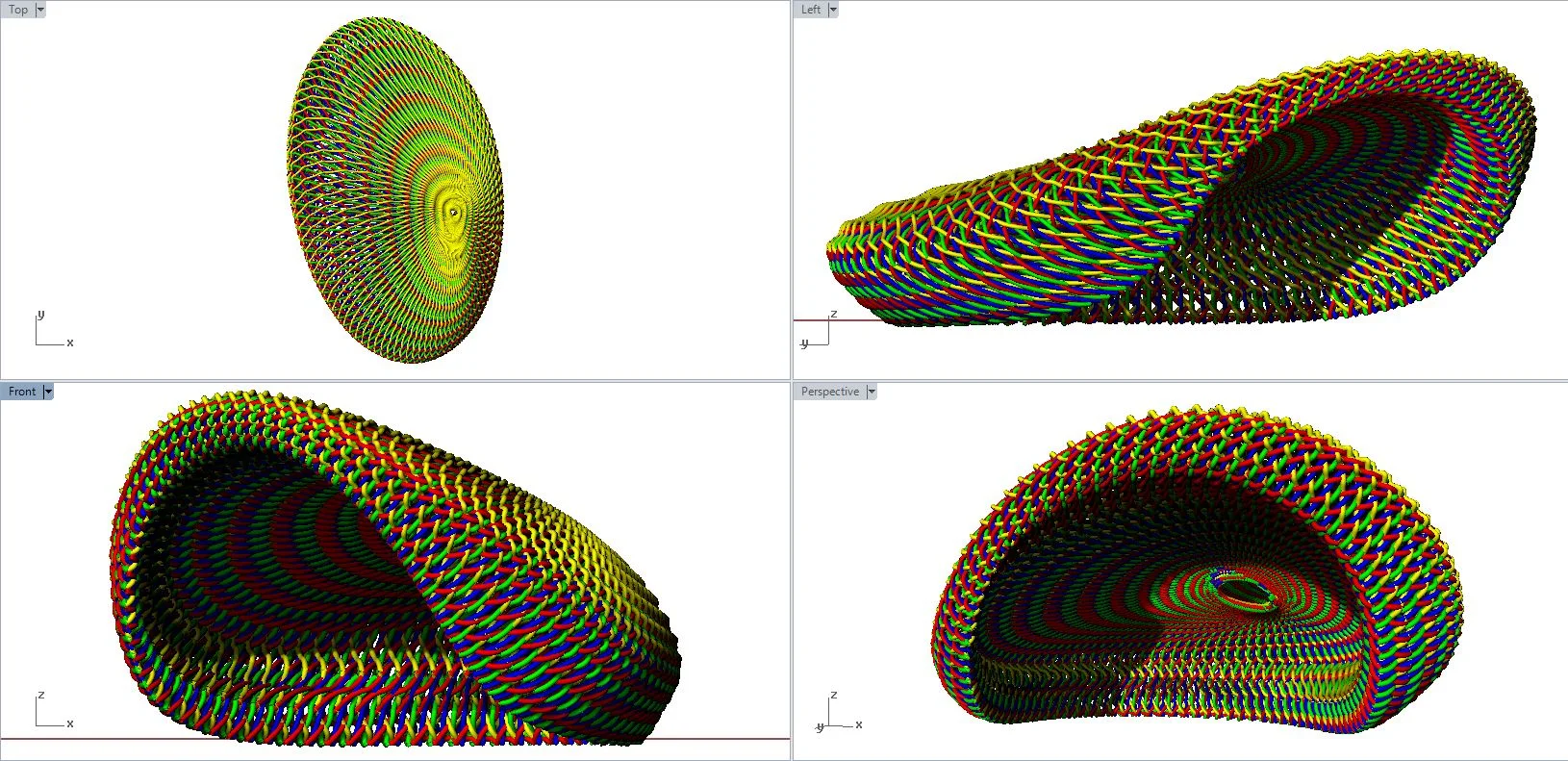

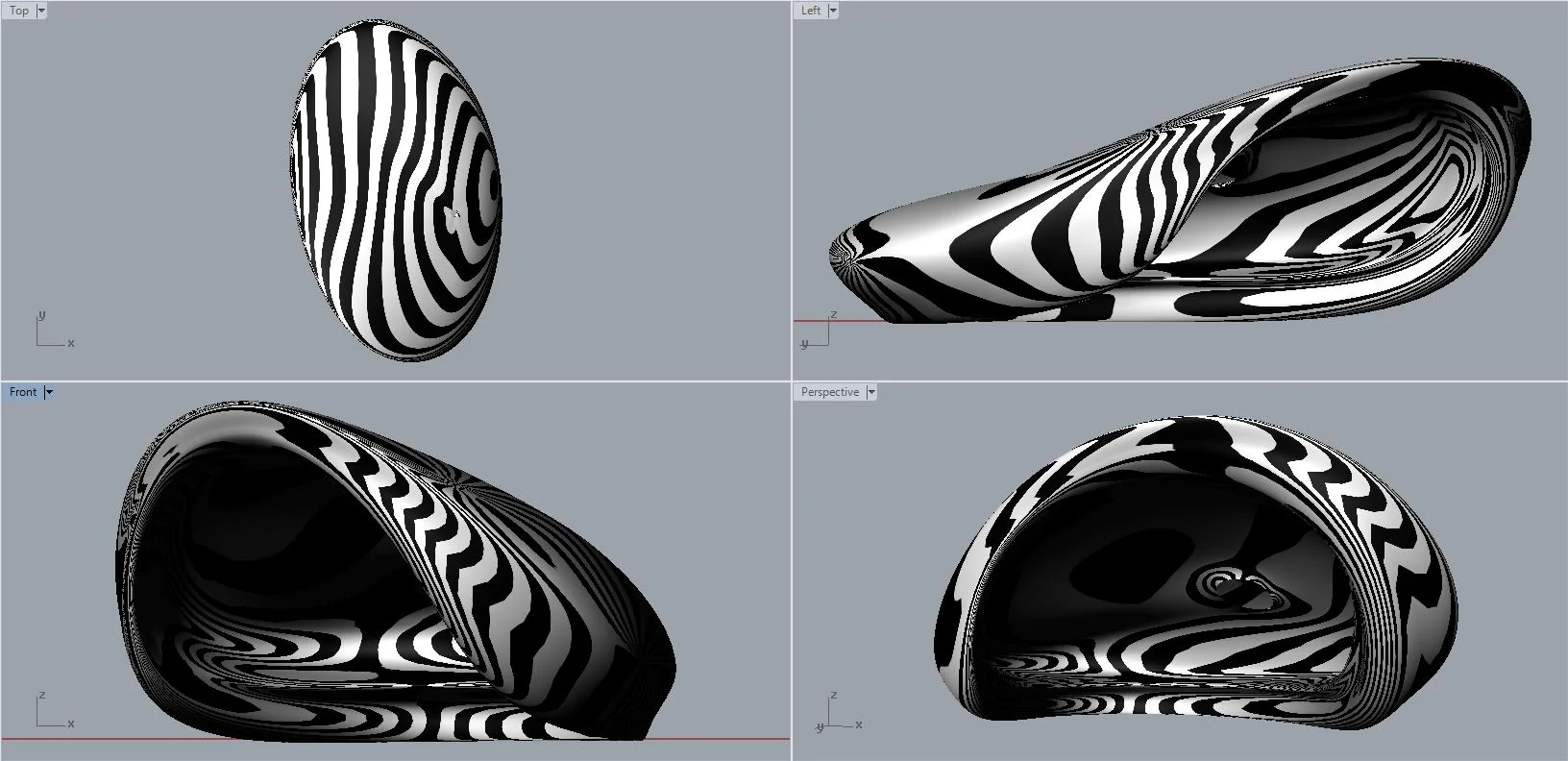

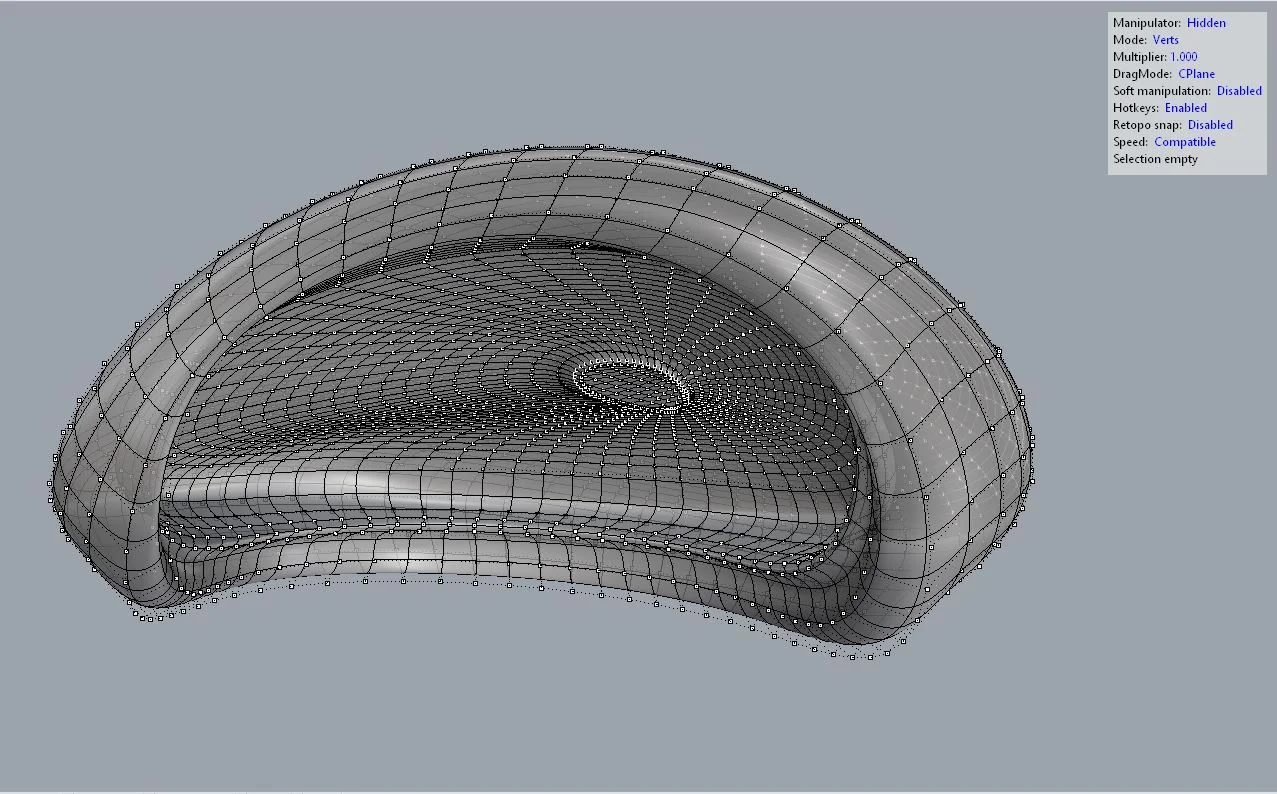

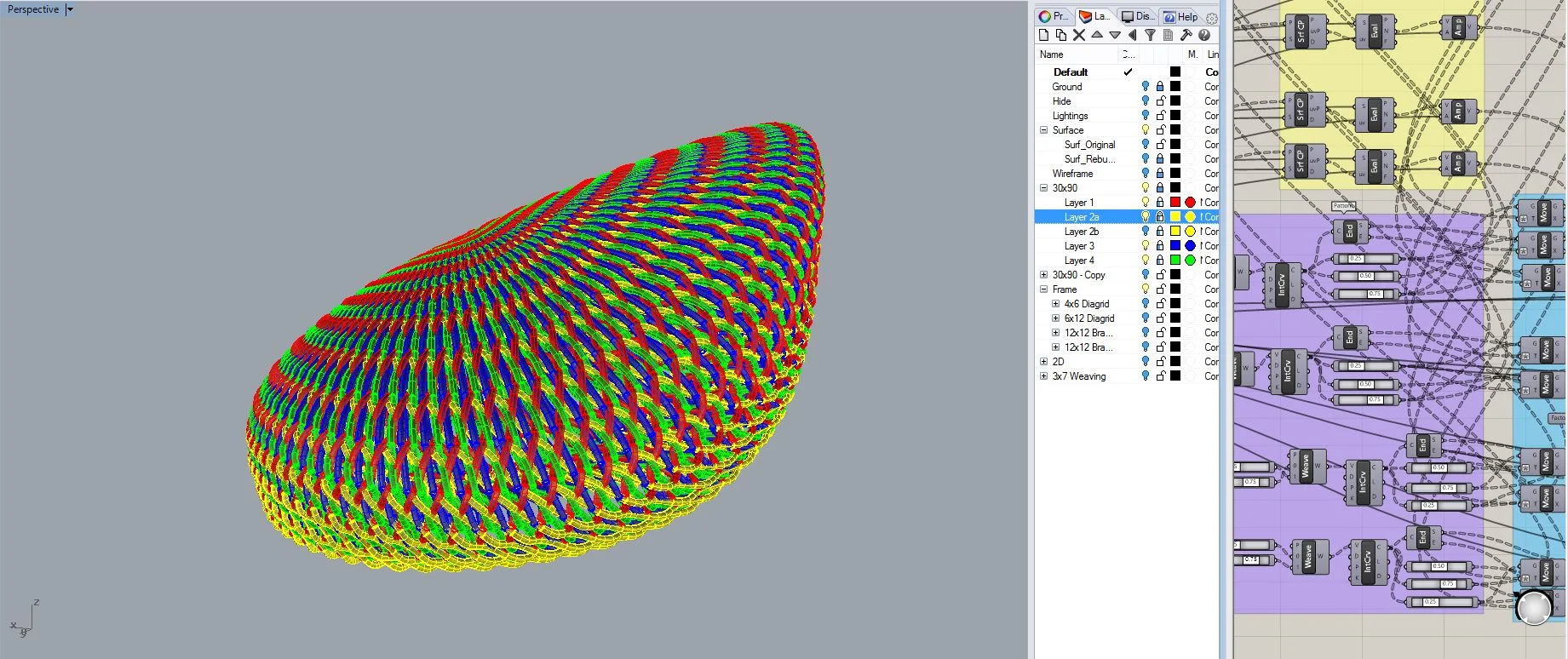

Form Study -1

Form Study -2

Form Study -3

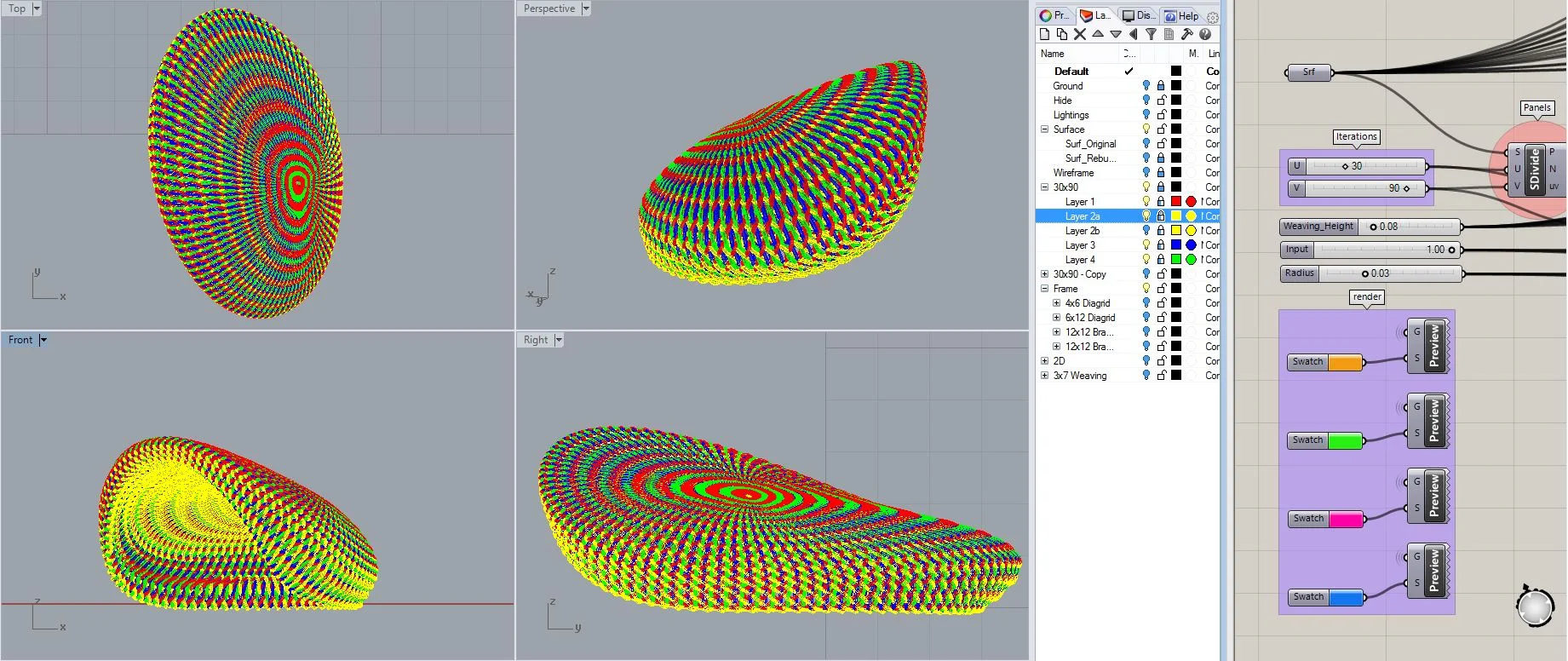

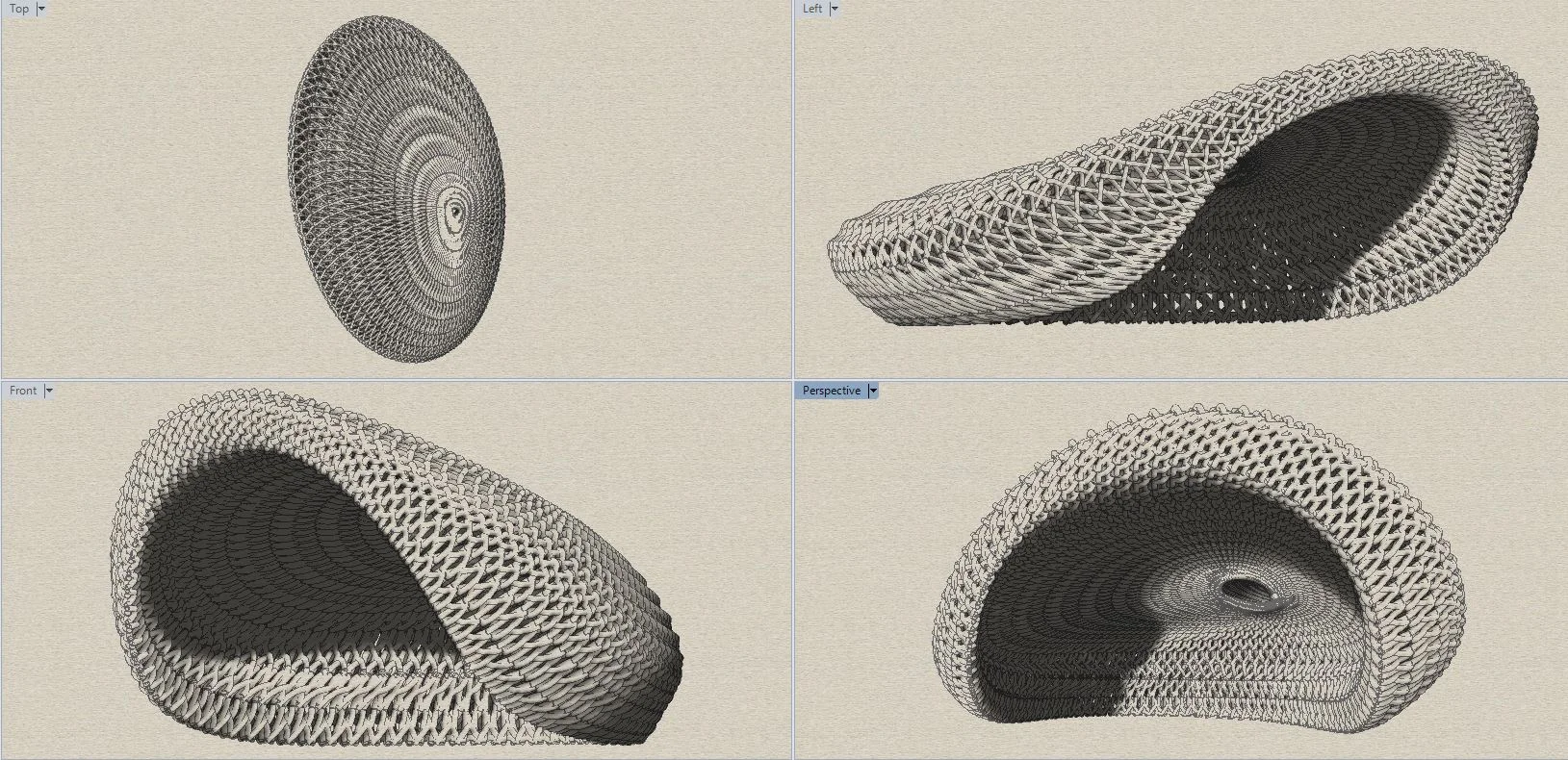

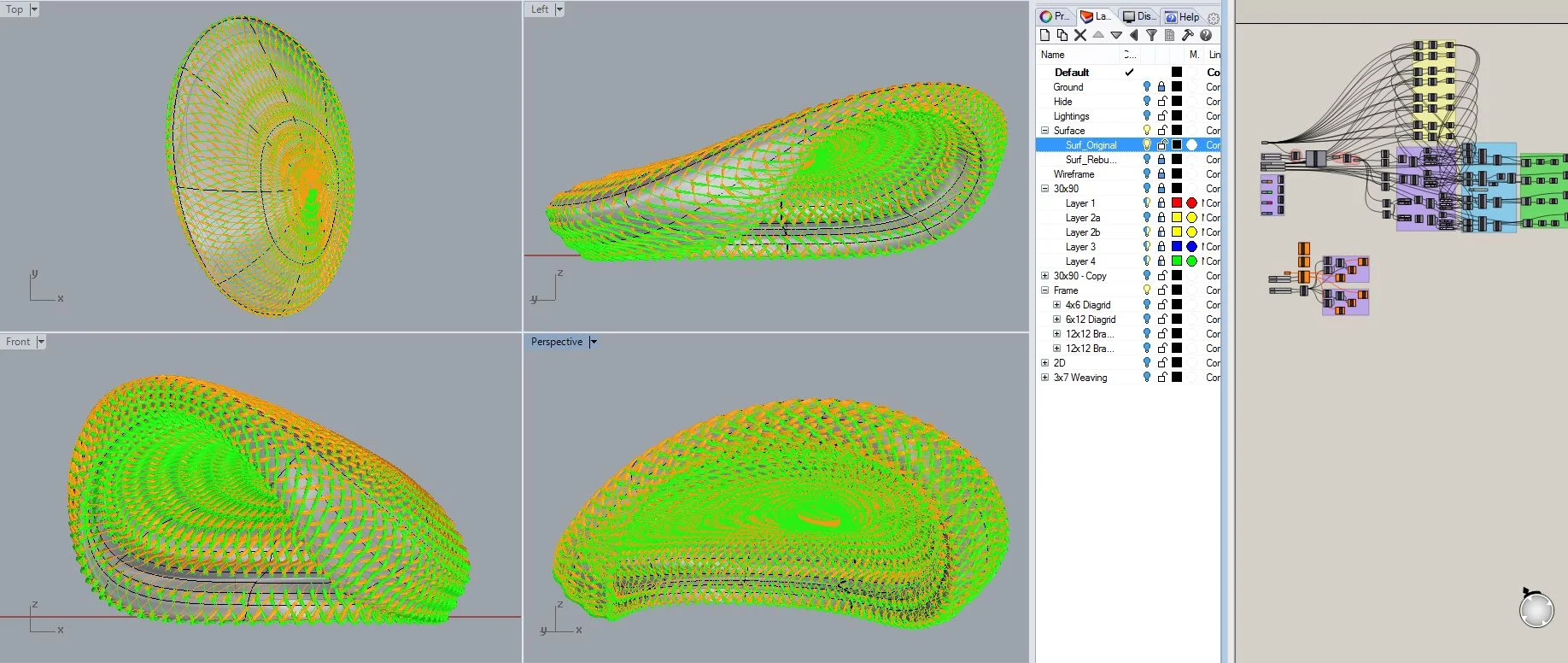

Skin-Making Development -1

Skin-Making Development -2

Skin-Making Development -3

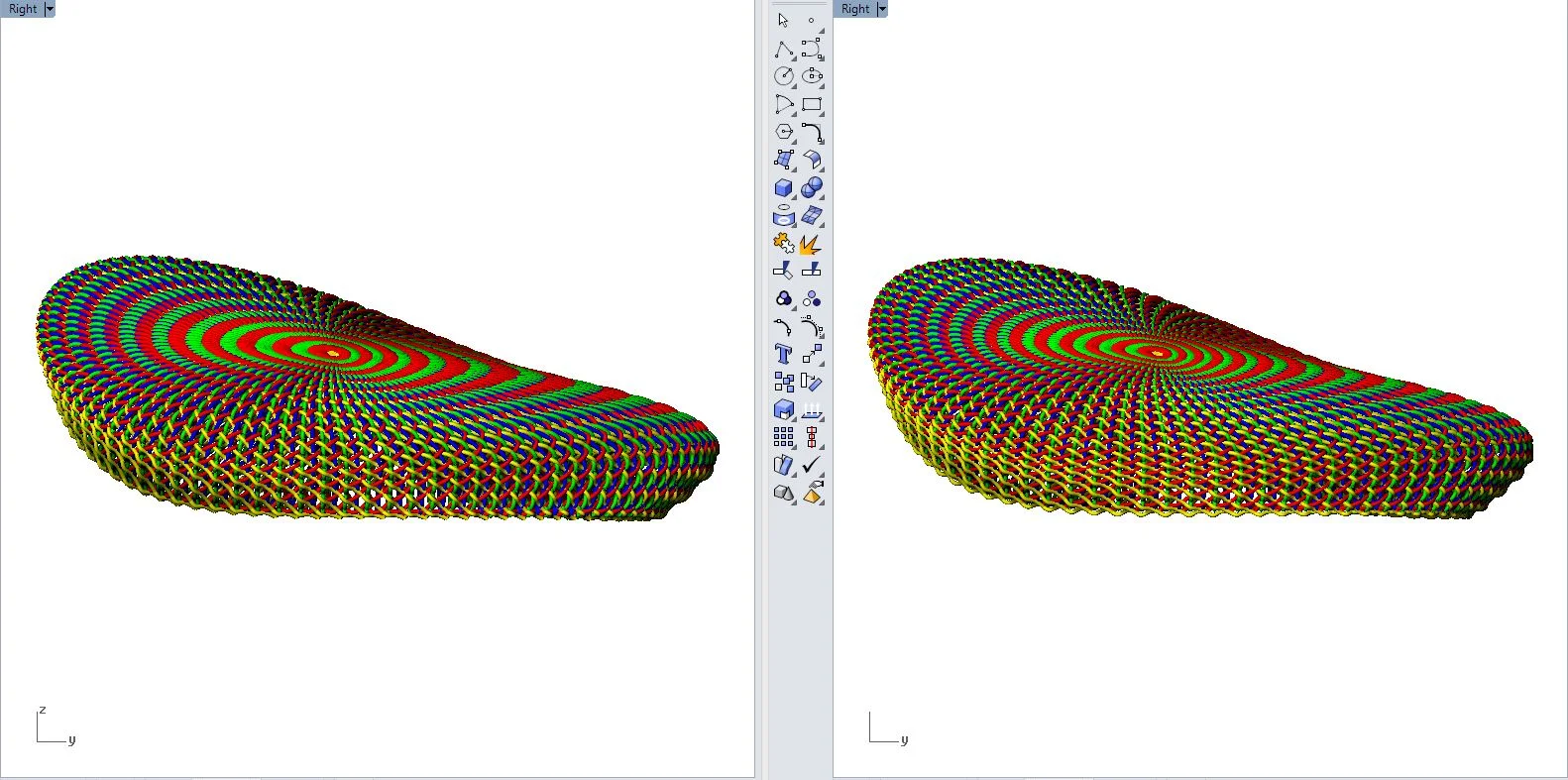

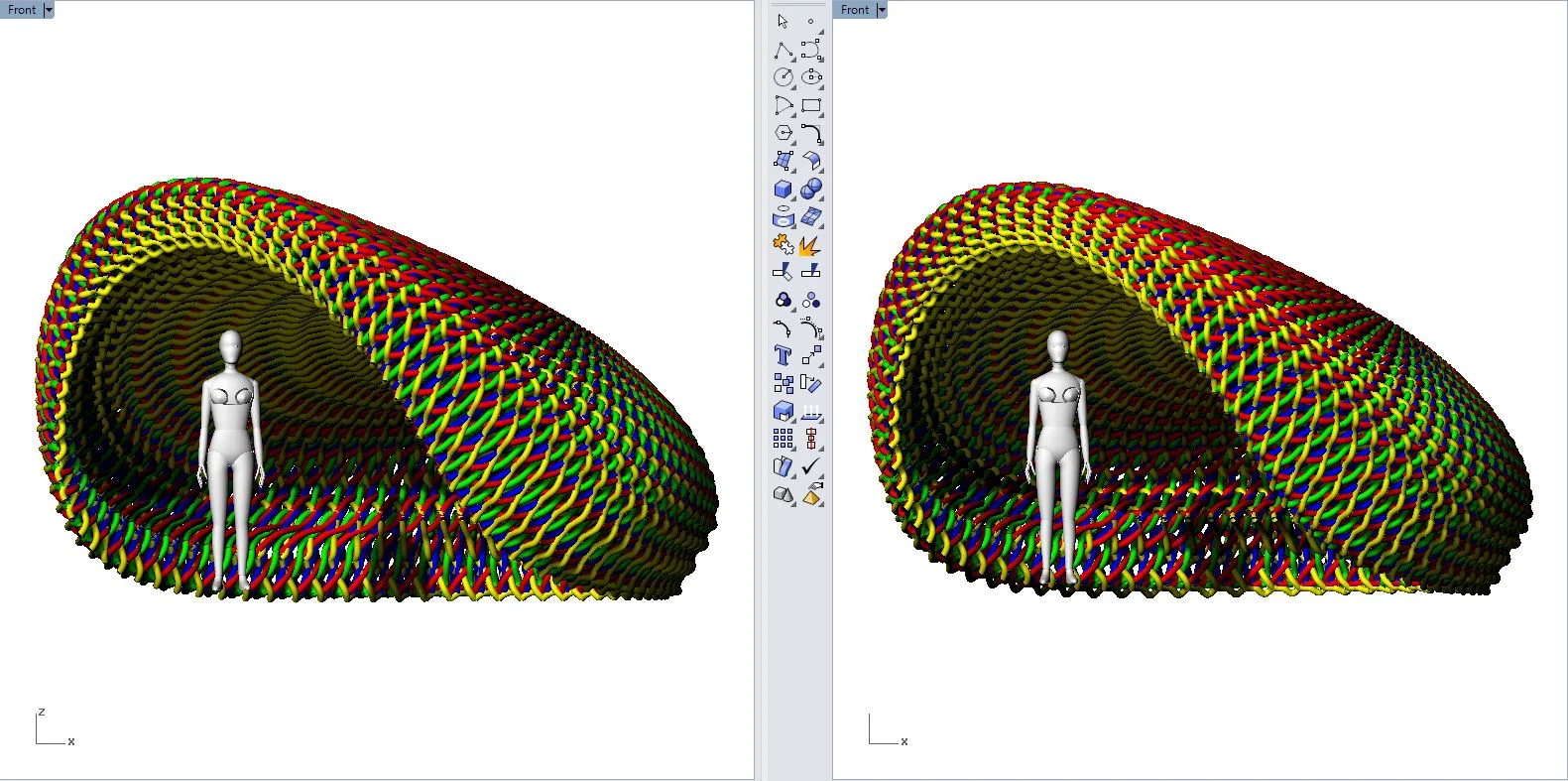

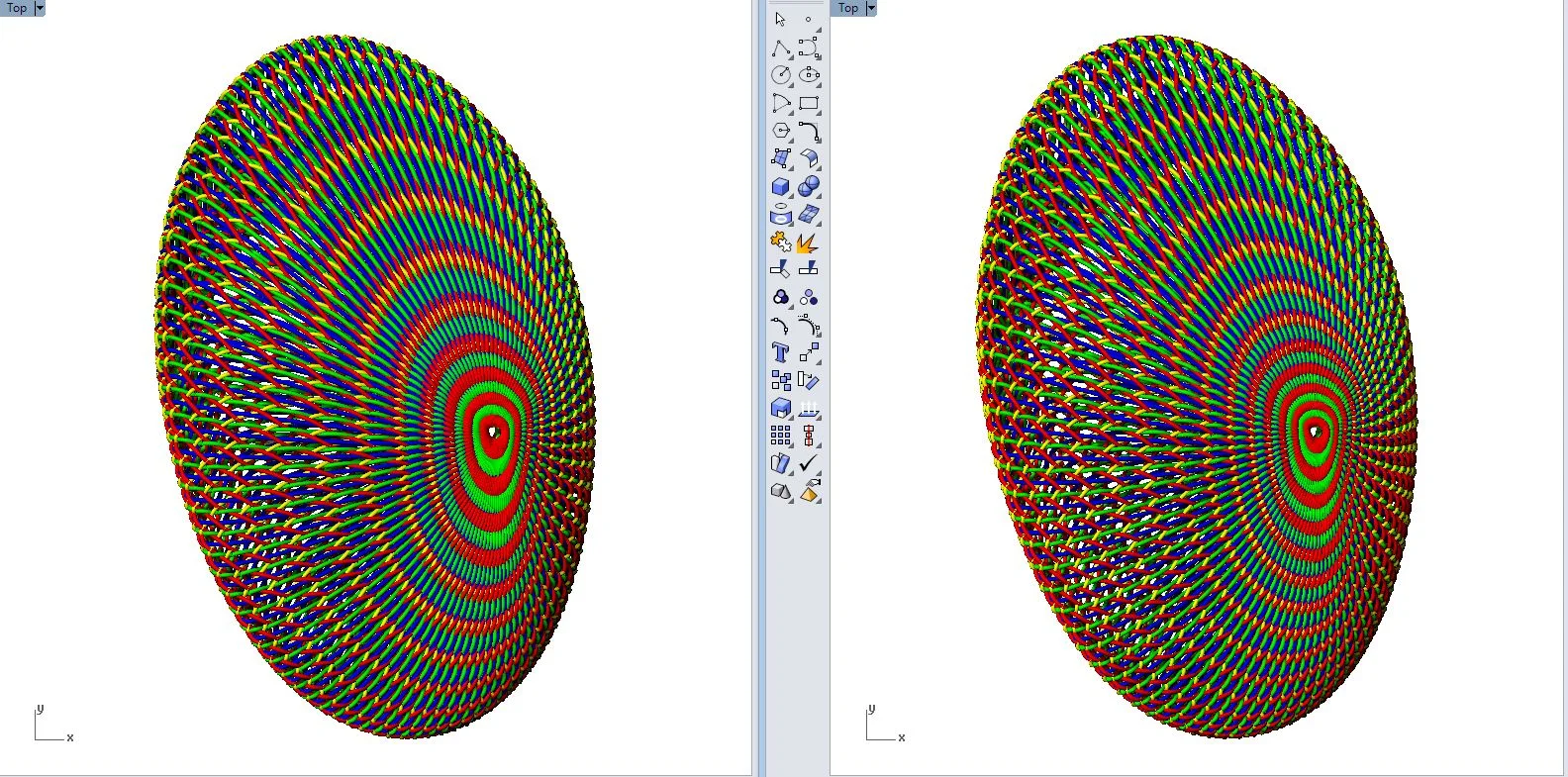

Skin-Making Development - Density vs Porousity Study

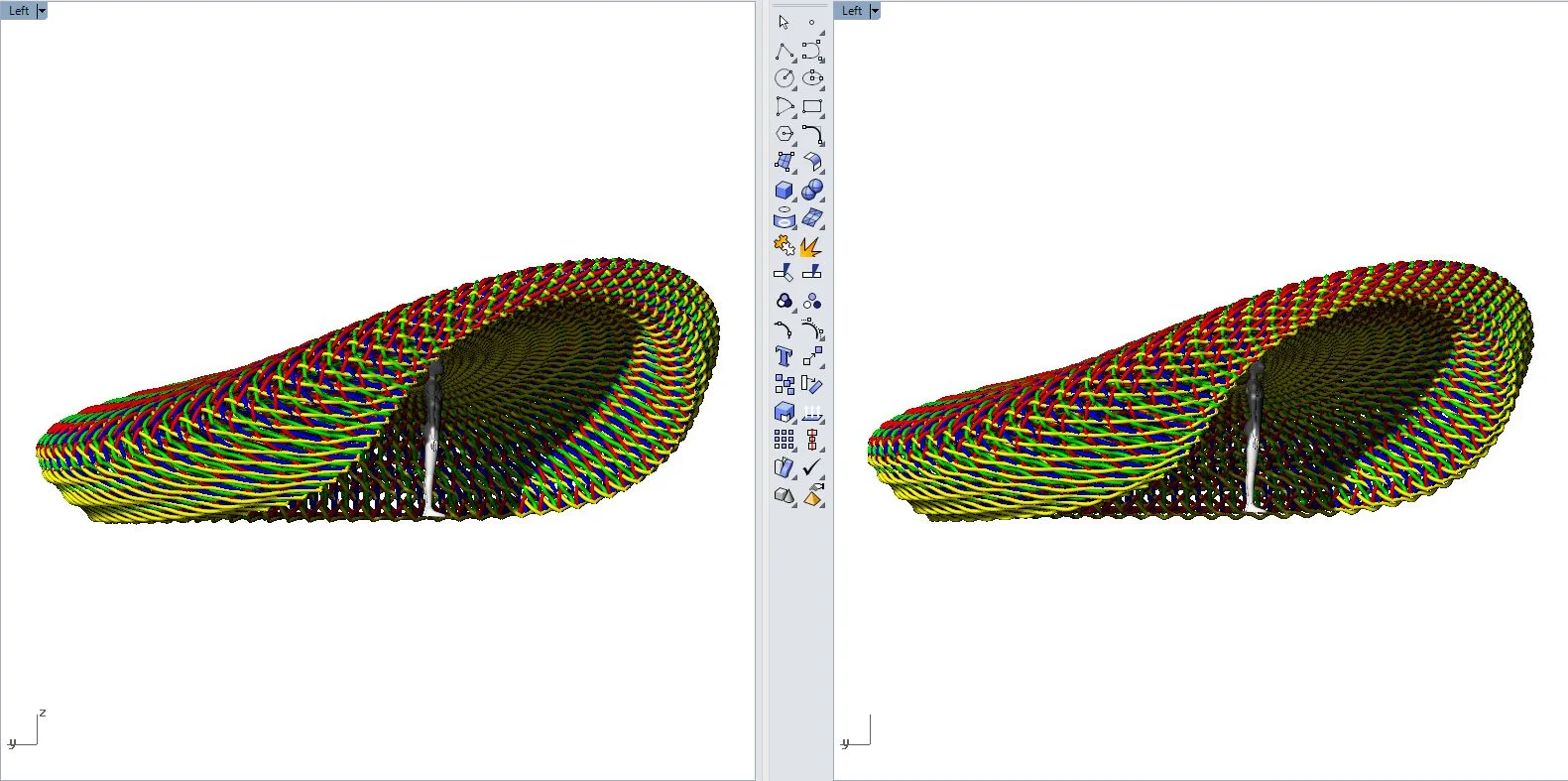

Skin-Making Development - Density vs Porousity Study

Skin-Making Development - Density vs Porousity Study

Skin-Making Development - Density vs Porousity Study

Structural Frame (Steel Square Pipe 30x30)

Sisal Ropes' (ø50mm)  double skins over Structural Frame (Steel Square Pipe 30x30)

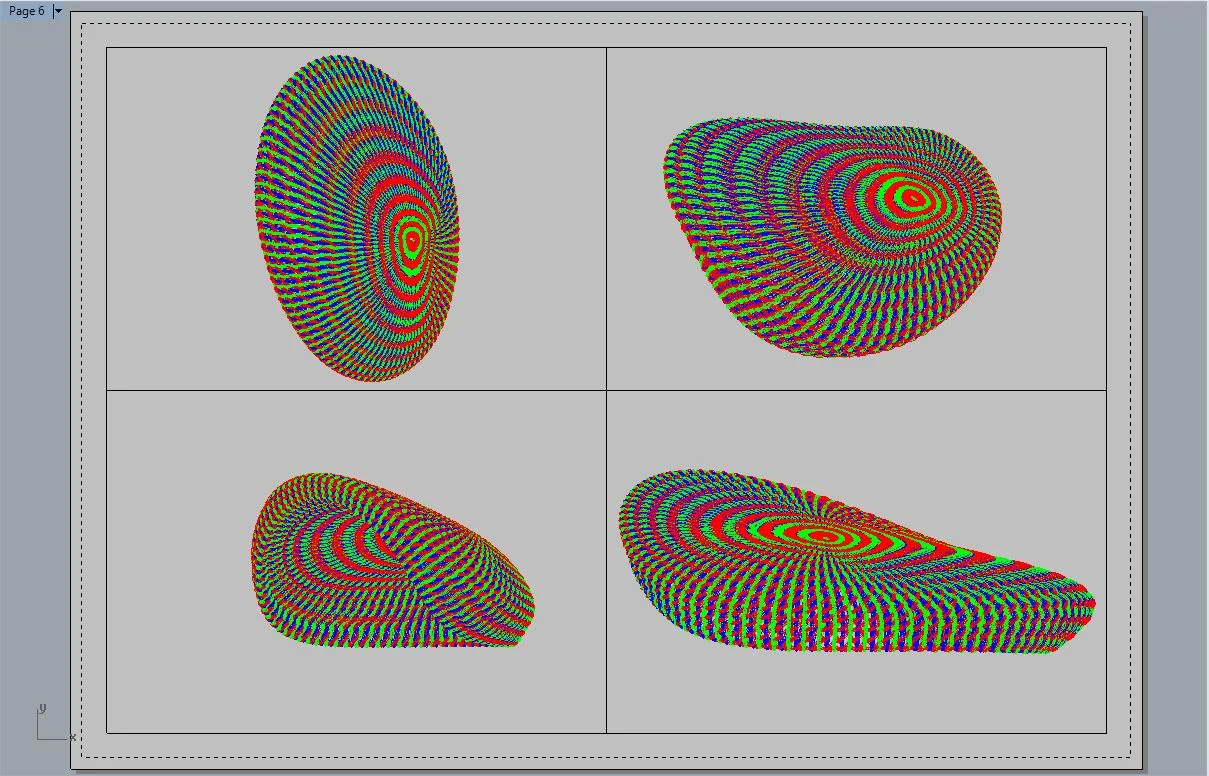

Skin-Making Development -4

Skin-Making Development -5

Skin-Making Development -6
